Apartment Intercom StationsApple Core Electronics will delight you with top-notch apartment intercom stations, satisfaction guaranteed.
ACE 300HD
THE ACE300HD IS OUR PREMIUM APARTMENT INTERCOM UNIT. ITS STAINLESS STEEL FINISH GIVES THE UNIT A UNIQUE BUT DURABLE LOOK. THE ACE300HD COMES IN A SATIN FINISH AND COMES WITH THREE METAL PUSH BUTTONS. IT’S SURFACE MOUNT DESIGN, MAKES IT EASY FOR ANY APPLICATION. THE ACE300HD ALSO COMES WITH A BACK PLATE WHICH ALLOWS IT TO BE INSTALLED ONTO A ONE OR TWO GANG ELECTRICAL BOX.
- SURFACE MOUNT/WITH MOUNTING BACK PLATE
- 5” WIDE X 7” TALL X 1 ¼" DEPTH
- 20 GAUGE STAINLESS STEEL
- 45 OHM SPEAKER
- REPLACES TEKTONE,LEE DAN, AUTH 3, 4 OR 5 WIRE, MIRTONE 4 WIRE, GRAYSTONE AND JERON UNITS.

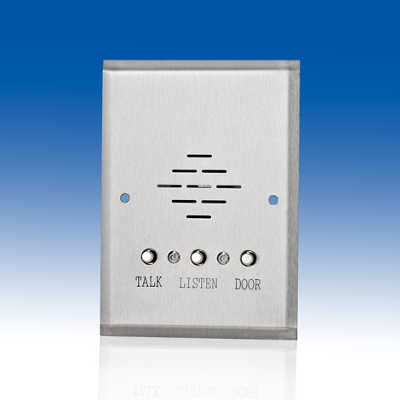

ACE 300HD Tek Tone
THE ACE300HDTEK IS ONE OF OUR PREMIUM APARTMENT INTERCOM UNITS. ITS STAINLESS STEEL FINISH GIVES THE UNIT A UNIQUE BUT DURABLE LOOK. THE ACE300HDTEK COMES IN A SATIN FINISH AND COMES WITH THREE METAL PUSH BUTTONS. ITS FLUSH MOUNT DESIGN MAKES IT EASY FOR ANY APPLICATION. THE ACE300HDTEK IS DESIGNED TO REPLACE A TEKTONE STYLE UNIT.
- FLUSH MOUNT BEVEL DESIGN
- 5” WIDE X 7” TALL X BEVEL DESIGN
- MOUNTING HOLES ARE 3 ¾" APART FROM LEFT TO RIGHT ON CENTER
- 20 GAUGE STAINLESS STEEL
- 45 OHM SPEAKER
- REPLACES TEKTONE STYLE UNIT

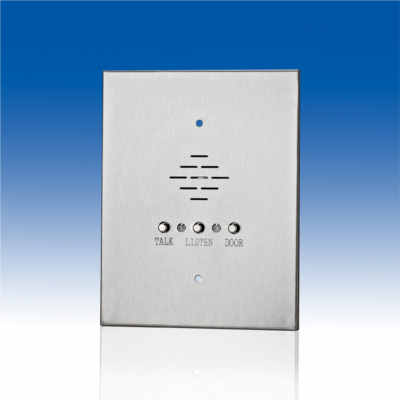

ACE 301HD
THE ACE301HD IS ONE OF OUR PREMIUM APARTMENT INTERCOM UNITS. ITS STAINLESS STEEL FINISH GIVES THE UNIT A UNIQUE BUT DURABLE LOOK. THE ACE301HD COMES IN A SATIN FINISH AND COMES WITH THREE METAL PUSH BUTTONS. ITS FLUSH MOUNT DESIGN MAKES IT EASY FOR ANY APPLICATION. THE ACE301HD ALSO COMES WITH A BACK PLATE WHICH ALLOWS IT TO BE INSTALLED ONTO A LOEFFLER STYLE BACKBOX .
- FLUSH MOUNT/WITH MOUNTING BACK PLATE
- 7” WIDE X 9” TALL X 3/16" DEPTH
- MOUNTING HOLES 5 ½" APART ON CENTER
- OPTION MOUNTING HOLES 7” APART ON CENTER
- 20 GAUGE STAINLESS STEEL
- OPTION MOUNTING HOLES 7” APART ON CENTER
- REPLACES LOEFFLER STYLE UNIT

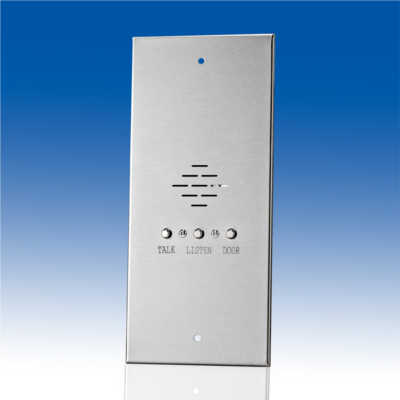

ACE 302HD
THE ACE302HD IS ONE OF OUR PREMIUM APARTMENT INTERCOM UNITS. ITS STAINLESS STEEL FINISH GIVES THE UNIT A UNIQUE BUT DURABLE LOOK. THE ACE302HD COMES IN A SATIN FINISH AND COMES WITH THREE METAL PUSH BUTTONS. IT’S FLUSH MOUNT DESIGN, MAKES IT EASY FOR ANY APPLICATION. THE ACE302HD IS DESIGNED TO REPLACE AN AUTH LONG CHASSIE UNIT.
- FLUSH MOUNT DESIGN
- 5 1/2” WIDE X 12 1/2” TALL X 3/16 DEPTH
- MOUNTING HOLES ARE 10 ½ APART ON CENTER
- 20 GAUGE STAINLESS STEEL
- 45 OHM SPEAKER
- 20 GAUGE STAINLESS STEEL
- REPLACES AUTH LONG CHASSIE UNIT

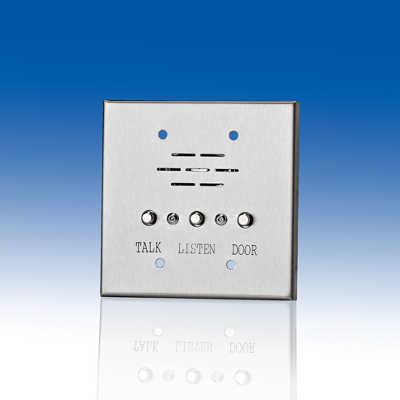

ACE 300HD 2Gang
THE ACE300HD2GANG IS ONE OF OUR PREMIUM APARTMENT INTERCOM UNITS. ITS STAINLESS STEEL FINISH GIVES THE UNIT A UNIQUE BUT DURABLE LOOK. THE ACE300HD2GANG COMES IN A SATIN FINISH AND COMES WITH THREE METAL PUSH BUTTONS. IT’S SEMI SURFACE MOUNT DESIGN, MAKES IT EASY FOR ANY APPLICATION. THE ACE300HD2GANG IS DESIGNED TO FIT DIRECTLY OVER A 2GANG BACK BOX.
- SEMI SURFACE
- 5” WIDE X 5 1/2” TALL X ½" BEND
- MOUNTING HOLES ARE DESIGNED TO MOUNT DIRECTLY TO A 2GANG BOX
- 20 GAUGE STAINLESS STEEL
- 45 OHM SPEAKER

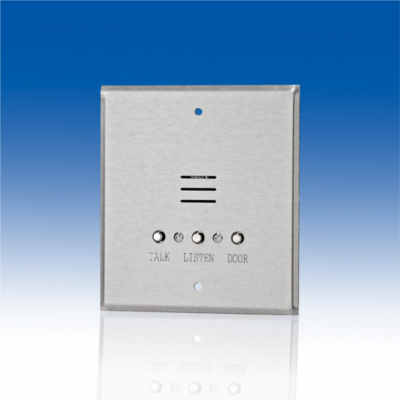

ACE 300HD 3311
THE ACE300HD3311 IS ONE OF OUR PREMIUM APARTMENT INTERCOM UNITS. ITS STAINLESS STEEL FINISH GIVES THE UNIT A UNIQUE BUT DURABLE LOOK. THE ACE300HD3311 COMES IN A SATIN FINISH AND COMES WITH THREE METAL PUSH BUTTONS. IT’S FLUSH MOUNT DESIGN, MAKES IT EASY FOR ANY APPLICATION. THE ACE300HD3311 IS DESIGNED TO REPLACE AN AUTH 3311 UNIT.
- FLUSH MOUNT BEVEL DESIGN
- 6 3/8” WIDE X 7 1/8” TALL X BEVEL DESIGN
- MOUNTING HOLES ARE 5 ½" APART ON CENTER
- 20 GAUGE STAINLESS STEEL
- 45 OHM SPEAKER
- REPLACES AUTH 3311 UNIT

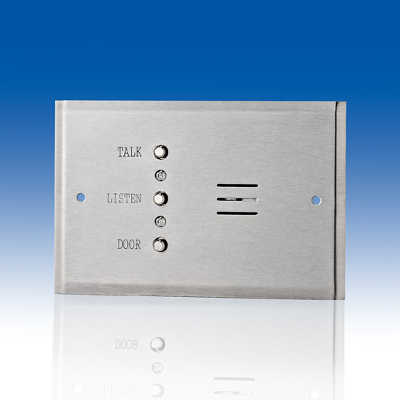

ACE 300HD MirTone
THE ACE300HDMIR IS ONE OF OUR PREMIUM APARTMENT INTERCOM UNITS. ITS STAINLESS STEEL FINISH GIVES THE UNIT A UNIQUE BUT DURABLE LOOK. THE ACE300HDMIR COMES IN A SATIN FINISH AND COMES WITH THREE METAL PUSH BUTTONS. ITS FLUSH MOUNT DESIGN MAKES IT EASY FOR ANY APPLICATION. THE ACE300HDMIR IS DESIGNED TO REPLACE A MIRTONE WIDE UNIT.
- FLUSH MOUNT, BEVEL DESIGN
- 8” WIDE X 5 1/4” TALL BEVEL DESIGN
- MOUNTING HOLES ARE 6 ½" APART FROM LEFT TO RIGHT ON CENTER
- 20 GAUGE STAINLESS STEEL
- 45 OHM SPEAKER
- REPLACES A MIRTONE WIDE UNIT
